Teltonika Networks

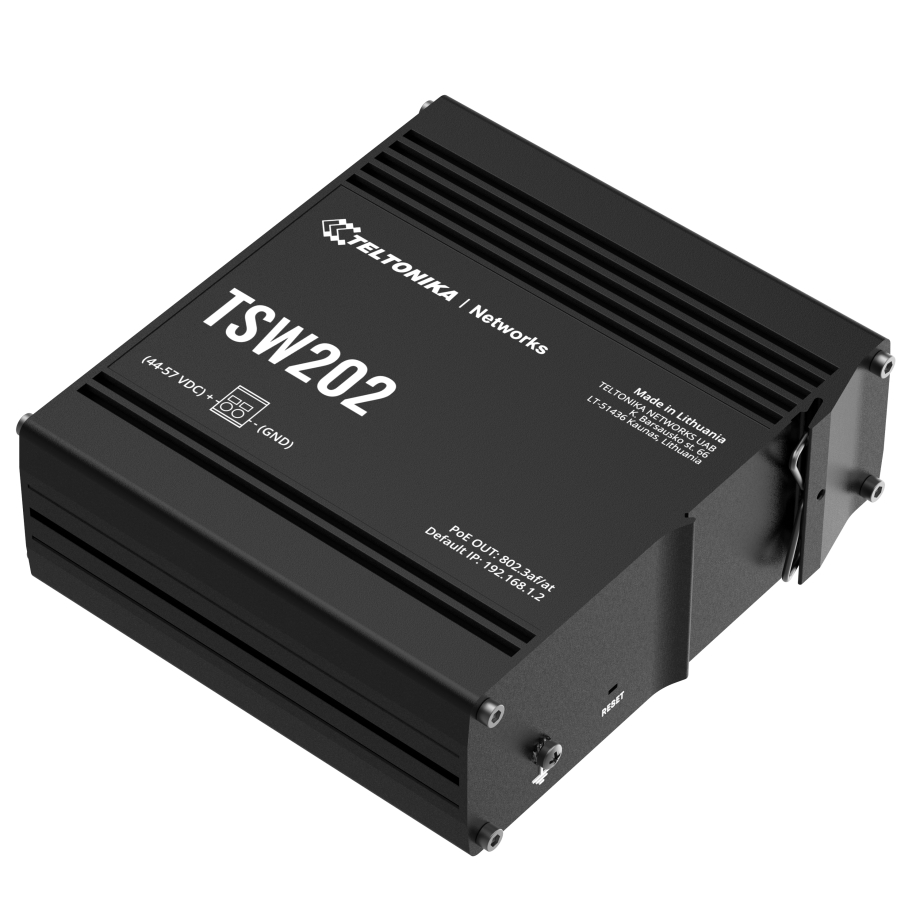

TSW202
A managed Ethernet switch combining industrial network control and power delivery to connected equipment.
Technical specifications
| Parameter | Value |
|---|---|
| Copper Ethernet ports | 8 × 10/100/1000 Mbit/s |
| Optical uplink slots | 2 × SFP |
| Maximum PoE power per port | 30 W |
| PoE standard | IEEE 802.3af / 802.3at |
| Network management | Layer 2 + Layer 3 features |
Applications and use cases
- A managed wired network for an industrial or commercial energy installation.
- Connecting compatible PoE devices with an optical uplink where the project requires it.
Equipment scope / supply scope
- Confirm the power supply, SFP modules and fibre leads separately against the selected order code.
- PoE availability depends on the specified input voltage and the total power budget of the installed power supply.
- Check the required industrial protocol and firmware/order-code support before committing to an automation project.
Installation considerations
- Calculate combined PoE loads rather than applying the per-port maximum to every port without a budget check.
- Choose suitable cabinet mounting, DC supply, SFP type and fibre distance for the site.
- Commission VLANs, redundancy and management access to the network design.
