Samsung

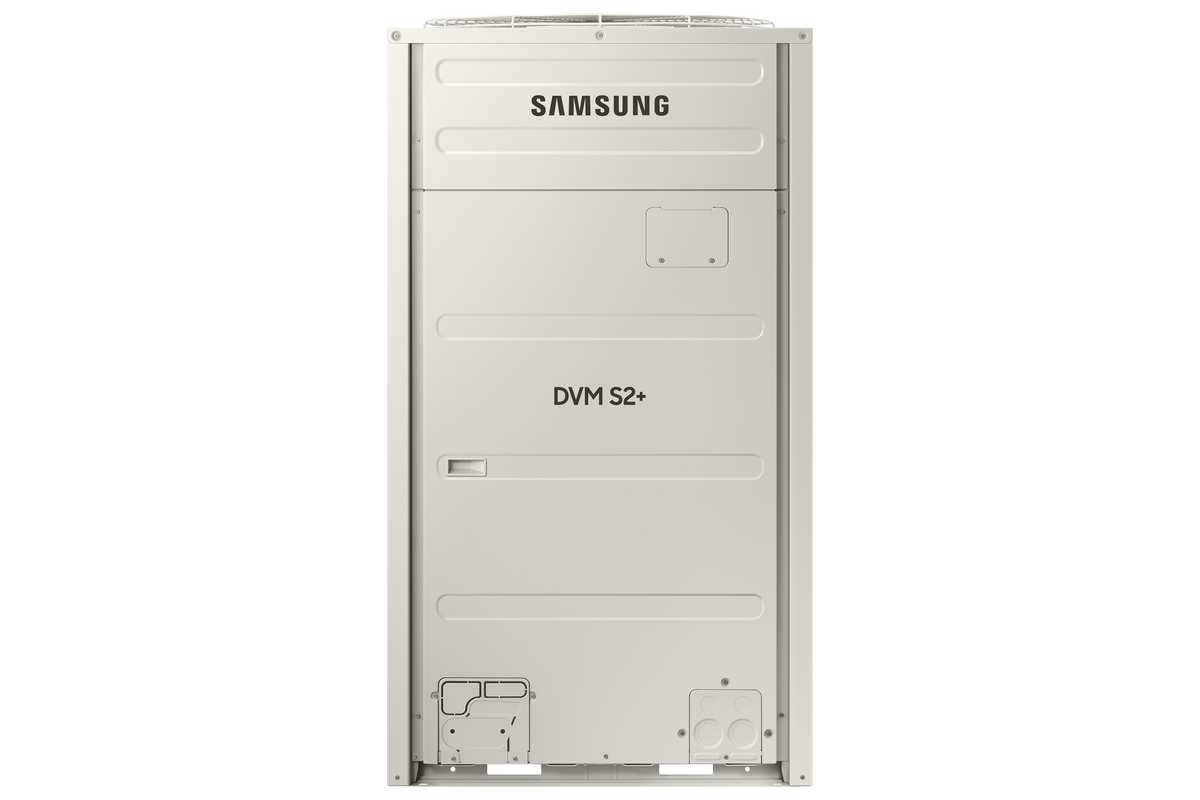

DVM S2 R32 AM080HCVANGEU
An R32 outdoor unit for multi-zone commercial heating or cooling systems.
Manufacturer series image; dimensions and configuration depend on the selected model.
Technical specifications
| Parameter | Value |
|---|---|
| Nominal cooling capacity | 22.4 kW |
| Refrigerant | R32 |
| Supply phases | 3 |
| Outdoor dimensions W×H×D | 930×1 695×765 mm |
| Outdoor net mass | 183 kg |
| Cooling ambient range | −5…+52 °C |
Applications and use cases
- Multi-zone commercial premises
- Office heating or cooling
- Retail climate systems
Equipment scope / supply scope
- AM080HCVANGEU outdoor heat-pump unit.
- Indoor units, shut-off boxes and controls require project selection.
Configuration
- Select compatible R32 indoor units and required safety components.
- Verify electrical connection and refrigerant piping design.
- AI Booster Kit MVR-A01E is an additional selection for new AI features.
