Midea
Aqua Thermal R32
A modular R32 platform for commercial water-based heating and cooling systems.

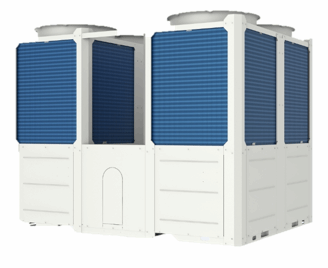

Manufacturer series image; dimensions and configuration depend on the selected model.
Technical specifications
| Parameter | Value |
|---|---|
| Refrigerant | R32 |
| Series cooling capacity | 70–164 kW |
| Series heating capacity | 75–180 kW |
| Electrical supply | 380–415 V · 3~ · 50 Hz |
| Cooling leaving-water range | 0–20 °C |
| Heating leaving-water range | 25–54 °C |
| Compressor technology | Scroll |
Applications and use cases
- Commercial water-based cooling
- Central building heating
- Modular plant configurations
Equipment scope / supply scope
- MC-SU75/90/140/180-RN8L-B modular chiller family.
- Hydraulic distribution and optional domestic-hot-water arrangement are specified separately.
Configuration
- Select modules against simultaneous project loads.
- Check water temperatures, flow and frost-protection strategy.
- Define pumping and external control integration in the design.
