Daikin
VAM-J8
A concealed commercial ventilation range that recovers heat and moisture from extracted air.

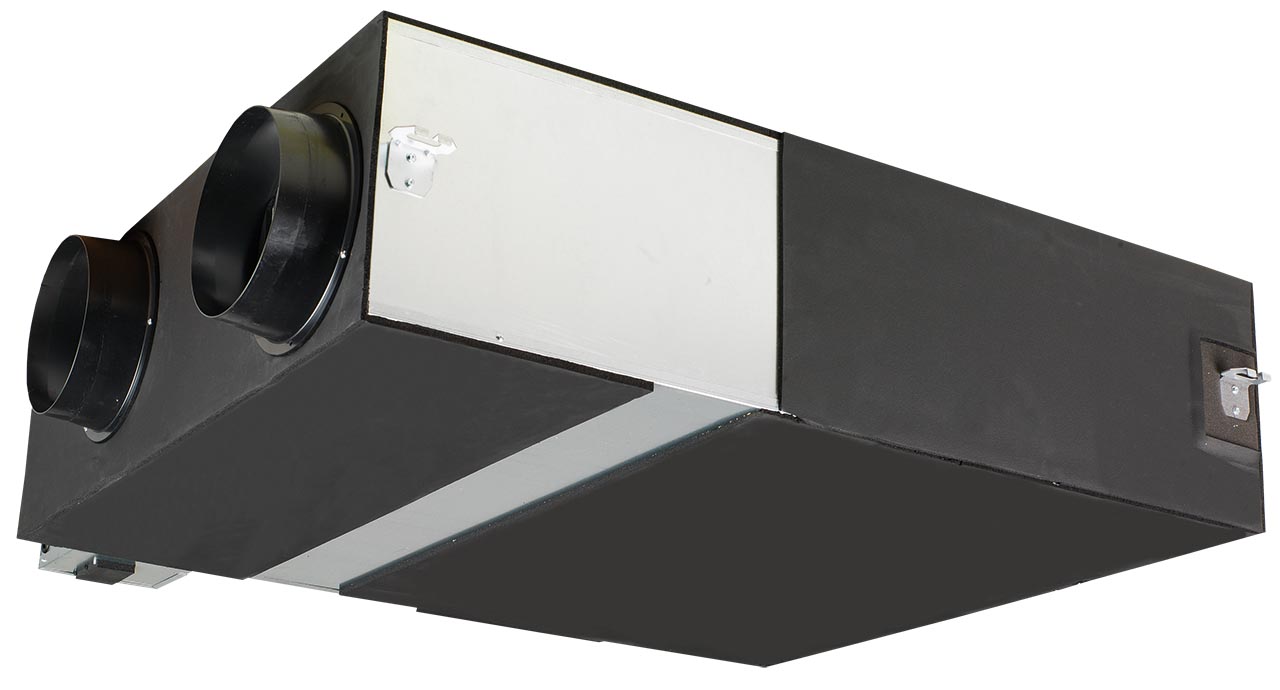

Manufacturer series image; dimensions and configuration depend on the selected model.
Technical specifications
| Parameter | Value |
|---|---|
| Series airflow range | 350–2 000 m³/h |
| Fan technology | DC |
| Operating air-temperature range | −10…+46 °C |
| Maximum relative humidity | 80% |
| Optional filter classes | ePM10 70% · ePM1 55% · ePM1 70% |
Applications and use cases
- Office fresh-air ventilation
- Shops and restaurants
- Concealed ceiling installations
Equipment scope / supply scope
- Heat-recovery ventilation unit with model-specific duct flanges and fixing screws.
- Ductwork, external heaters and optional controls are project selections.
Configuration
- Size airflow and duct pressure losses for the premises.
- Provide indoor service access for filters and the exchanger.
- Confirm standalone control or separately designed VRV integration.
